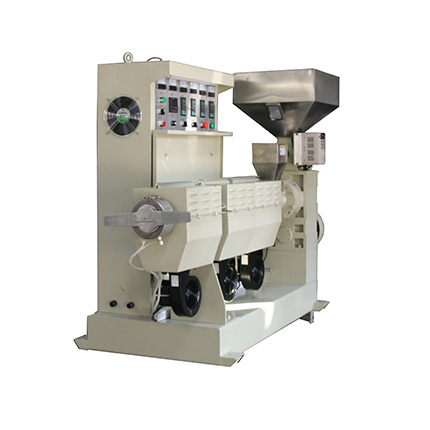

Product Name：Single Screw Extruder HQ-45 （Manual type screen changer）
Small output plastics Pelletizing machines
Advantage
Small machine, big capacity, quality steady.
Application:
The HQ-45 is a Small output plastics Pelletizing machines
Specifically designed for plastic pellets applications such as ABS, PC, PP, PE, HIPS, TPU, AB coloration, mix, modified, added, composite, recycling, and making granular. excellent work in transparent PC material.
Technical Data
| Model No. | HQ-45 | HQ-65 | HQ--90 | HQ-105(High speed) | HQ-120 | HQ-150 |
Capacity (PC+ABS)
| 20-50KG/HR | 80-130KG/HR | 200-300KG/HR | 400-600KG/HR | 400-600KG/HR
| 600-1000KG/HR |
Install Dimension (mm)
| 2300*880*1500 | 3200*1000*1800
| 4500*1800*2100
| 5600*1400*1900
| 5600*2400*2500 | 6500*2800*2500 |
Total Weight
| 1500KG | 1800KG
| 2800KG
| 4800KG
| 5100KG
| 6200KG |
Screen changer
Manual type screen changer: Easy to change materials and clean.
Production line
Single screw Plastic Extruder 1 piece
Water cooling tank with suction motor 1 piece
Plastics Pellets Cutting Machine 1 piece
Plastic Vibrating Machine with Hopper 1 piece
