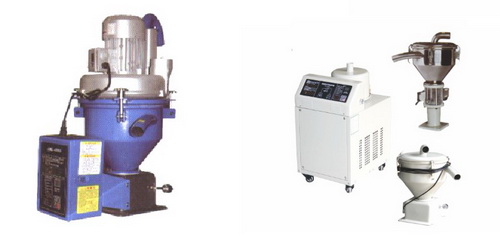

Product Name：Plastic granules&powder auto loader machine
Plastic granules&powder auto loader machine
Model: HQ-300G
Product features
1. Small size, light weight, can be directly installed in the dryer or other machinery equipment, to achieve automatic filling tools.
2. Easy operation, microcomputer control, high level automation, strong suction and stable operation.
3. Pioneered use of line controller control, under the cabinet can easily setup and control equipment.
4. Stainless steel door, motor with overload protection device.
5. Optional: Europeanization of proportional valve feeding, buzzer for the lack of material alarm and air filter.
Structural diagram
Parameters
Model | HQ-300G | HQ-400G | HQ-700G | HQ-800G | HQ-800G2 | HQ-900G1M2 | HQ-900G2M2 | HQ-900G3M2 | HQ-800G2PA | HQ-800G2PB |
Motor | Model | Brush type Induction type |
| 100wl | 1HP3 | 120wl | 1HP3 | 2HP3 | 1HP3 | 2HP3 | 3HP3 | 2HP- | 2HP3 |
Conveying height | 4 | 4 | 4 | 4 | 7 | 4 | 4 | 8 | 4/2 | 4/2 |
Delivery capacity | 350 | 350 | 350 | 450/350 | 650/550 | 300*2 | 450*2 | 900*2 | 380 | 380 |
Static pressure | 1550 | 1550 | 1550 | 1440 | 1800 | 1400 | 1800 | 2450 | | |
Tank capacity | 7.5 | 7.5 | 7.5 | 7.5 | 12 | 7.5*2 | 12*2 | 50*2 | 7.5 | 18 |
Feed pipe diameter | 38mm | 38mm | 38mm | 38mm | 38mm | 38mm | 38mm | 38mm | 38mm | 38mm |
Size | Main body | 40*36*52 | 40*36*71 | 37*30*55 | 46*38*70 | 46*38*70 | 80*60*90 | 80*60*90 | 80*60*90 | 52*35*79 | 52*35*103 |
Tank | 40*36*52 | 40*36*71 | 40*30*44 | 40*30*44 | 40*30*50 | 40*30*44*2 | 40*30*44*2 | 50*50*85*2 | 70*48*111 | 70*48*111 |
Weight | Main body | 11 | 11 | 18 | 46 | 58 | 85 | 95 | 100 | | |
Tank | 6 | 6 | 8 | 6*2 | 7*2 | 15*2 | | |
